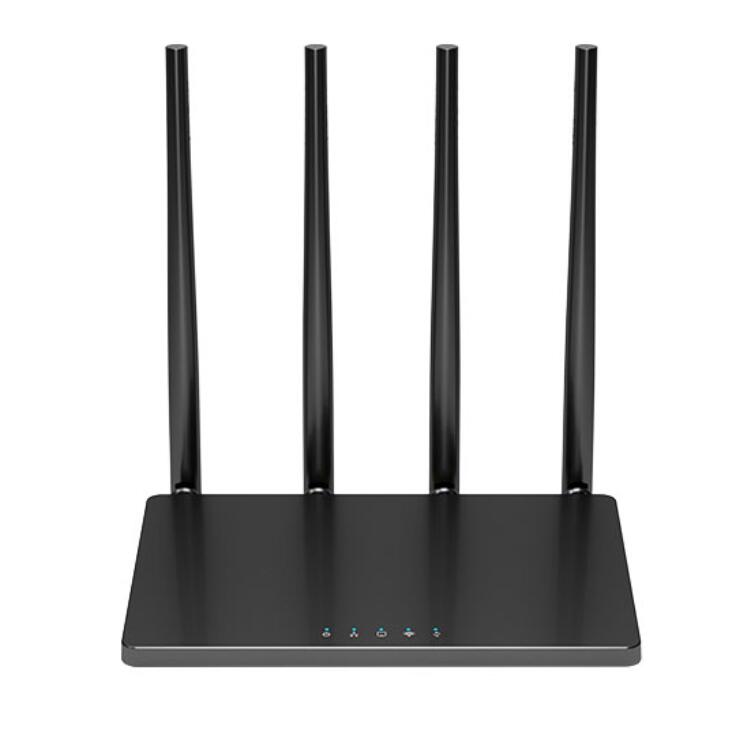

AC1200 Wi-Fi Router

2021-07-30 20:13
  • Supports 802.11ac, Compatible with 802.11 b/g/n/ac products.
  • Dual band – for combined wireless speeds of up to 1.2Gbps at 2.4GHz and 5GHz band concurrently.
  • Supports PPTP/L2TP VPN protocols.
  • 4*5dBi external antennas provide maximum Omni-directional wireless coverage and reliability.
  • QoS prioritizes network traffic by assigning bandwidth classes, ensuring reliability of essential services, and effectively avoiding network congestion.
  • Parental Controls allow you to manage network usage and access for everyone on your account, protecting your children from inappropriate online activities.
  • Easy one-touch wireless security encryption with the WPS button.
  • Easy Setup Assistant provides quick & hassle free installation.

Specifications

General

Wireless StandardsIEEE802.11a/n/ac,5GHz
IEEE802.11b/g/n,2.4GHz
Signal Rate5GHz:Up to 867Mbps
2.4GHz:Up to 300Mbps
Operation Frequency 2.4GHz and 5GHz
Reception Sensitivity5GHz
11a 6Mbps : -96dBm, 11a 54Mbps: -79dBm
11ac HT20: -71dBm, 11ac HT40: -66dBm, 11ac HT80: -63dBm,
11n HT20: -72dBm, 11n HT40: -71dBm

2.4GHz
11g 54M: -77dBm
11n HT20: -74dBm, 11n HT40: -72dBm
Wireless SecurityWEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption

Hardware Standards

Interface1 x 10/100Mbps WAN Port
3 x 10/100Mbps LAN Port
Antenna4 x 5dBi external dual band antennas
ButtonWPS/ Reset Button
Power SupplyDC 12V1.0A
Dimensions202 x 128 x 35mm

Software Features

WAN Type Dynamic IP/Static IP/PPPoE
DHCPServer, DHCP Reservation, Static Route, DDNS
Quality of ServiceDownload / Upload Speed control
Port ForwardingVirtual Server, Port Triggering, DMZ
VPN Pass-ThroughPPTP, L2TP
Access ControlParental Control, Host List, Access Control, Rule Management
Firewall SecuritySPI Firewall, IP and MAC Address Binding
ManagementAccess Control, Local Management, Remote Management
Internet ProtocolIPv4

Environment

Operating Temperature0°C~40°C (32°F~104°F)
Storage Temperature-40°C~70°C (-40°F~158°F)
Relative Humidity10{a4a02a3b92dfb2ca8171dbe6857d99b7828ff9f00cf9efb88ab97b01bfae3734}~90{a4a02a3b92dfb2ca8171dbe6857d99b7828ff9f00cf9efb88ab97b01bfae3734}, non-condensing
Storage Humidity5{a4a02a3b92dfb2ca8171dbe6857d99b7828ff9f00cf9efb88ab97b01bfae3734}~90{a4a02a3b92dfb2ca8171dbe6857d99b7828ff9f00cf9efb88ab97b01bfae3734}, non-condensing

Package Contents

Package Contents1* WR743R-V2 Wireless Router
1* Ethernet Cable
1* Power Adapter
1* Quick install guide
