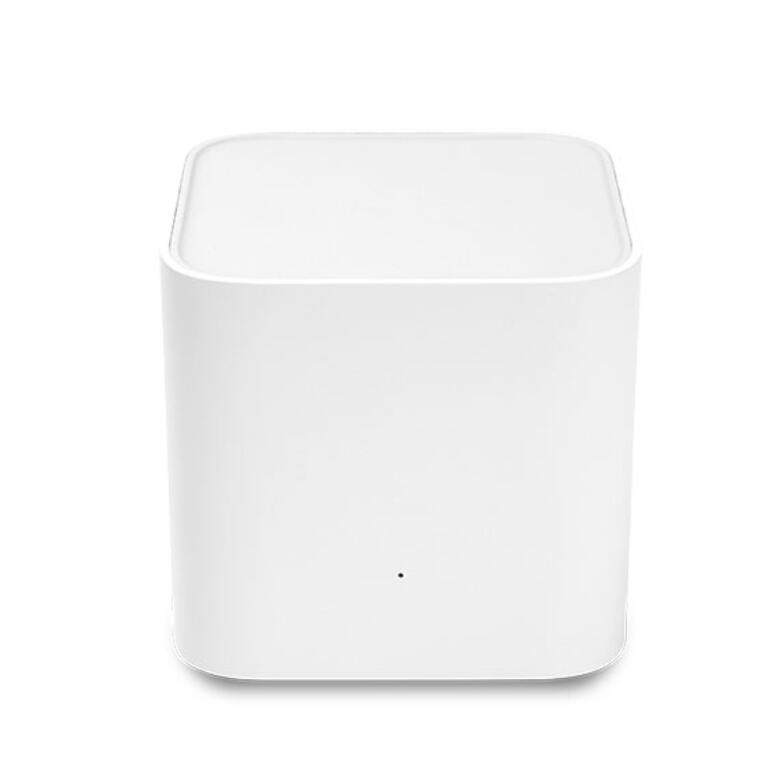

AC1200 MESH

2021-04-30 21:27
  • Complies with the next generation IEEE 802.11ac Wi-Fi standard.
  • 867Mbps on 5GHz and 300Mbps on 2.4GHz band for total 1167Mbps simultaneously.
  • Smart Mesh networking.
  • Supports multiple devices extension for wide Wi-Fi coverage.
  • Wireless roaming helps users auto switch to stronger signal source.
  • Next-GEN MU-MIMO technology improves user experience comprehensively.
  • Intelligent Beamforming delivers highly targeted and efficient Wi-Fi connection.
  • Full gigabit WAN and LAN ensures high speed Internet access and wired speed.
  • Supports DHCP, Static IP and PPPoE broadband functions.
  • QoS: Bandwidth Control based on IP address.

Specifications

General

Wireless StandardsIEEE802.11a/n/ac,5GHz
IEEE802.11b/g/n,2.4GHz
Signal Rate5GHz:Up to 867Mbps
2.4GHz:Up to 300Mbps
Operation Frequency2.4GHz and 5GHz
Basic FeaturesSSID Broadcast
Support MU-MIMO
Wireless SecurityWPA2-PSK(defalt)
Wireless RoamingComply with IEEE802.11 v/r

Hardware Standards

Ethernet StandardsIEEE802.3, IEEE802.3u
Interface1 Gigabit Ethernet WAN/LAN port
1 Gigabit Ethernet LAN port
Antenna2*3dBi dual band antennas
Button1 reset button
Power SupplyInput:100-240V—50/60Hz, 0.6A
Output:DC 12V==1A
Dimensions95 x 65 x 90mm

Software Features

Internet Connection TypeDynamic IP/Static IP/PPPoE
DHCPServer, Client, DHCP Client List, Address Reservation
Quality of ServiceWMM, Bandwidth Control
Port ForwardingVirtual Server, UPnP
VPN Pass-ThroughPPTP, L2TP, IPSec
Access ControlParental Control
Guest Network
Reset to factory settings
Firewall SecurityForbid UDP flood attack
Forbid TCP flood attack
Forbid ICMP flood attack
Internet ProtocolIPv4
Setup RequirementsSupports Web UI

Environment

Operating Temperature0°C~40°C (32°F~104°F)
Storage Temperature-40°C~70°C (-40°F~158°F)
Relative Humidity10{a4a02a3b92dfb2ca8171dbe6857d99b7828ff9f00cf9efb88ab97b01bfae3734}~90{a4a02a3b92dfb2ca8171dbe6857d99b7828ff9f00cf9efb88ab97b01bfae3734}, non-condensing
Storage Humidity5{a4a02a3b92dfb2ca8171dbe6857d99b7828ff9f00cf9efb88ab97b01bfae3734}~90{a4a02a3b92dfb2ca8171dbe6857d99b7828ff9f00cf9efb88ab97b01bfae3734}, non-condensing

Package Contents

Package Contents1* AR-M400P
1*Power adapter
1*Gigabit Ethernet cable
1*Quick install guide
CertificatesCE, RoHS
